StationBox® ALU Carrier Class Overview Technical Data Download Gallery Stock Locator

IP55 Die-Cast Aluminium Enclosure

StationBox® ALU Carrier Class is an IP55 rated outdoor CPE enclosure that offer excellent weather resistance and improved RF noise protection. IP66 rating can be achieved by sealing the drain hole. An increased height of the enclosure allows to host boards with high profile heatsinks or multiple radio cards.

Easy RouterBoard™ Integration

The inner mounting plate has premolded holes for easy installation of various popular boards such as MikroTikTM RouterBoardTM RB922, RB912, RB911, RB711, RB433, RB411; Alix; TP-linkTM; or UBNT™. Other devices of choice can be installed as well.

Easy Installation

The mounting system on StationBox® ALU Carrier Class allows easy and quick installation on a pole or on a wall. The mounting bracket is made of plastic to minimize mechanical vibrations coming from the pole to the enclosure and the electronics.

Built To Last

StationBox® ALU Carrier Class is made exclusively of high grade materials: die cast aluminum, UV resistant paint, and stainless steel hardware. The enclosure also features a number of nifty little details, such as captive screws that do not fall out when released, or slots for waterproof RJ-45 connectors.

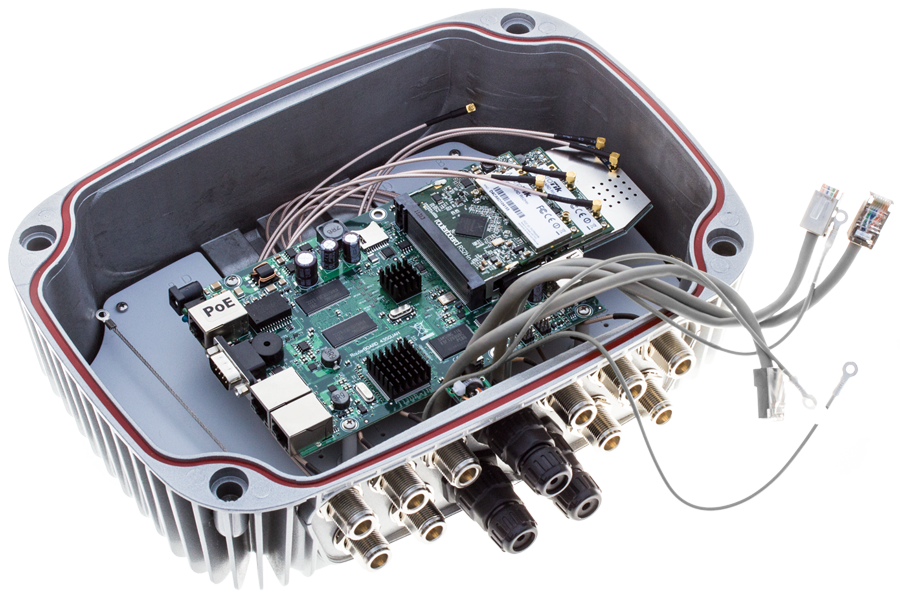

mounting w900
